EVOMAG42

EVOMAG42

Well suited for heavy-duty industrial and fabrication work.

EVOMAG42

Ideal for bridges, I-Beams, and steel framework on the job site.

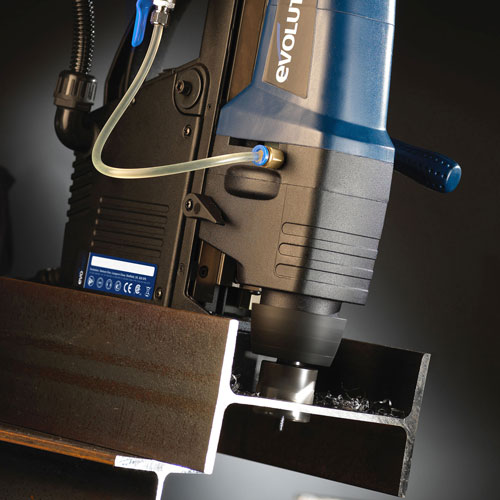

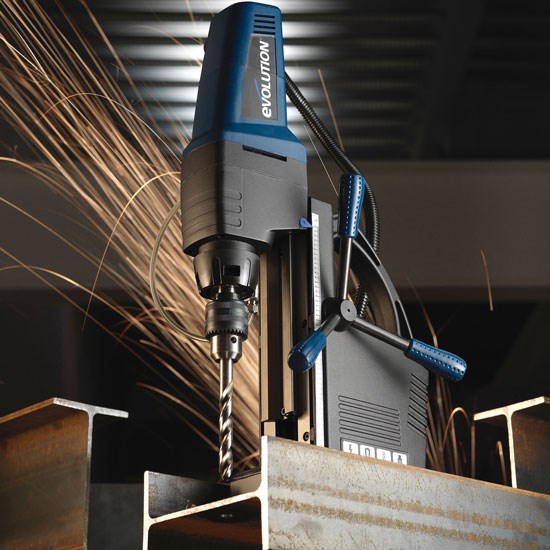

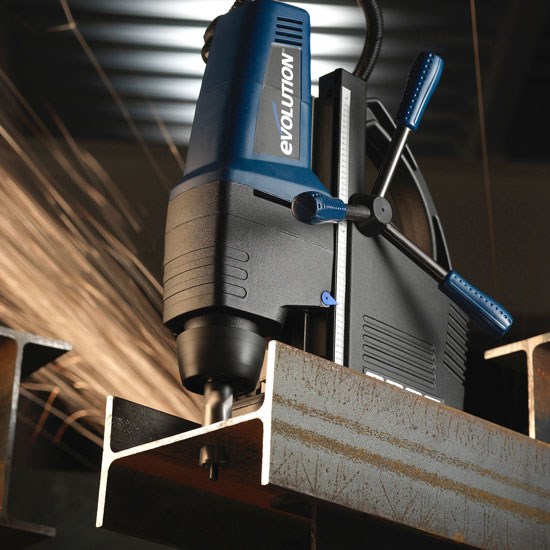

This magnetic drill is essential for drilling steel framework on the job site. Comes equipped with chuck and key for twist drill capability.

Technical Specifications

Motor 110v 1,200 Watts
Speed (No Load) 450 RPM
Maximum Twist Drill Diameter 1/2"
Maximum Cutting Diameter 1-5/8"
Maximum Cutting Depth 2"
Cutter Shank Diameter 3/4" Weldon Shank
Magnetic Holding Power 3/8" Plate 2,860 lbs
Weight 26 lbs
Dimensions 25-3/4" H x 8-3/4" W



Special Features

  • Heavy Duty Magnetic Holding Power
  • Switches protected with bar guards for added safety
  • Spoke handles can be mounted on left or right side
  • Coolant Tank
  • 1/2" Drill chuck and key
  • Quick release coolant hose
  • Three Hex keys
  • Three handles
  • Guard
  • Carrying case
  • Safety Chain
  • Three Year Warranty
  • CSA Approved

EVOMAG42

Image Description Part No. Availability Price Quantity Purchase
Magnetic Drill for up to 1-5/8" MAGEVO42 Same Day $740.00
Circlip 30mm EV42S1 Same Day $1.20
Clamping Piece EV42S10 Same Day $12.99
Finger EV42S12 Same Day $1.65
Rivet EV42S11 Same Day $1.20
Clamping Lever EV42S13 Same Day $7.99
Special Lock Screw (LH) EV42S14 Same Day $1.99
Screw m4x10 (8) EV42S15 Same Day $1.20
Gear box Housing EV42S16 Same Day $59.99
Circlip 25mm EV42S17 Same Day $1.99
Final Drive Gear EV42S18 Same Day $48.99
Bearing 627z EV42S19 Same Day $6.99
Clamping Sleeve EV42S2 Same Day $15.99
Primary Drive Shaft EV42S20 Same Day $44.99
Primary gear EV42S21 Same Day $32.99
Bearing 607zz EV42S22 Same Day $6.99
Seal EV42S23 Same Day $4.99
Spindle Bush EV42S24 Same Day $7.99
Circlip 20mm EV42S25 Same Day $1.65
Screw m5x60 (4) EV42S26 Same Day $1.20
Spring Washer 5mm (10) EV42S27 Same Day $1.20
Flat Washer 5mm (4) EV42S28 Same Day $1.20
Coolant nozzle EV42S29 Same Day $8.99
Pin 3 x 12 EV42S3 Same Day $2.99
Tapping screw ST4.2x25 (4) EV42S30 Same Day $1.20
Gear Box Cover EV42S31 Same Day $29.99
Pin 4 x 16 (3) EV42S32 Same Day $4.99
O ring 26 x 2 EV42S33 Same Day $2.99
Bearing 6000rs EV42S34 Same Day $6.99
Armature 110V EV42S35 Same Day $85.99
Bearing 607zz EV42S36 Same Day $6.99
Bearing Sleeve EV42S37 Same Day $6.99
Insulator ring EV42S38 Same Day $6.99
Ring Magnet EV42S39 Same Day $8.99
Screw m8x8 (2) EV42S4 Same Day $1.20
Air Deflector EV42S40 Same Day $6.99
Tapping screw ST4.2x70 (2) EV42S41 Same Day $2.99
Field Assy 100V EV42S42 Same Day $68.99
Motor Housing EV42S43 Same Day $24.99
Spring (2) EV42S44 Same Day $4.99
Brush Holder (2) EV42S45 Same Day $6.99
Carbon Brush (PR) EV42S46 Same Day $13.99
Tapping Screw ST2.9 x9.5 EV42S47 Same Day $1.20
Sensor Base EV42S48 Same Day $8.99
Cable Connector EV42S49 Same Day $2.99
Main Drive Shaft EV42S5 Same Day $59.99
Sensor EV42S50 Same Day $14.99
Back Cover EV42S51 Same Day $17.99
Tapping Screw ST4.2 x 16 (2) EV42S52 Same Day $1.20
#53 Cable Connector EV42S53 Same Day $14.99
Cable Protector EV42S54 Same Day $4.99
Magnet Switch EV42S55 Same Day $29.99
Switch Plate EV42S56 Same Day $7.99
Screw M6x16 EV42S57 Same Day $1.20
Spring Washer 6mm EV42S58 Same Day $1.20
Special Washer 6 x27 x 2 EV42S59 Same Day $4.99
Flat Key EV42S6 Same Day $1.20
Shaft Sleeve (2) EV42S60 Same Day $4.99
Main Housing EV42S61 Same Day $145.99
Motor Switch EV42S62 Same Day $29.99
Leaf Spring EV42S63 Same Day $6.99
Depth Rule EV42S64 Same Day $7.99
Crank Handle (3) EV42S65 Same Day $8.99
Crank Axle EV42S66 Same Day $44.99
Spring Washer 4mm (7) EV42S67 Same Day $1.20
Pressure Bar EV42S68 Same Day $4.99
Guide Bar (2) EV42S69 Same Day $14.99
Screw m4x20 (6) EV42S70 Same Day $1.20
Rack EV42S71 Same Day $39.99
Drill Slide EV42S72 Same Day $65.99
Screw M4x8 (2) EV42S73 Same Day $1.20
Screw m4x16 (2) EV42S74 Same Day $1.20
Guard USA EV42S75B Same Day $32.99
Magnetic Base 110V EV42S76 Same Day $215.99
Screw M5 x 40 EV42S77 Same Day $1.20
Control PCB 110V EV42S78 Same Day $79.99
Side Cover EV42S79 Same Day $22.99
Circlip 47mm EV42S8 Same Day $1.65
Screw m4x8 (6) EV42S81 Same Day $1.20
Wing Screw & Washer (2) EV42S82 Same Day $1.20
Cord Sheath EV42S83 Same Day $1.20
Connecting Cord EV42S84 Same Day $1.20
Screw EV42S85 Same Day $1.20
Circlip EV42S86 Same Day $1.20
Washer EV42S87 Same Day $1.20
Coolant Seal EV42S88 Same Day $2.99
Spring EV42S89 Same Day $2.99
Bearing 6005 EV42S9 Same Day $9.99
2mm hex key EV42S90 Same Day $2.99
3mm hex key EV42S91 Same Day $2.99
4mm hex key EV42S92 Same Day $3.99
Safety Strap EV42S93 Same Day $7.99
5mm hex key EV42S94 Same Day $3.99
Fuse holder EV42S95 Same Day $10.99
Fuse 15 Amp 110V EV42S96 Same Day $1.99
