Baileigh SW-44

Standard Punches & Dies

221

Specifications

Head Diameter1-3/8"
Body Diameter1-7/32"
Overall Length2-3/8"

Equivalent Part Numbers

CPDF-20
APC121
PWEA

Stock Sizes shown. If you don’t see the size you need, scroll down to the bottom, click “any size not shown” and enter your size

Part No.	Size	Keyway	Description	Availability	Price
22104	1/8 (0.125)"	None	221 Round Punch 1/8	Same Day	$19.90
22105	5/32 (0.156)"	None	221 Round Punch 5/32	Same Day	$19.90
22106	3/16 (0.188)"	None	221 Round Punch 3/16	Same Day	$19.90
22107	7/32 (0.219)"	None	221 Round Punch 7/32	Same Day	$19.90
22108	1/4 (0.250)"	None	221 Round Punch 1/4	Same Day	$19.90
22109	9/32 (0.281)"	None	221 Round Punch 9/32	Same Day	$19.90
22110	5/16 (0.313)"	None	221 Round Punch 5/16	Same Day	$19.90
22111	11/32 (0.344)"	None	221 Round Punch 11/32	Same Day	$19.90
22112	3/8 (0.375)"	None	221 Round Punch 3/8	Same Day	$19.90
22113	13/32 (0.406)"	None	221 Round Punch 13/32	Same Day	$19.90
22114	7/16 (0.438)"	None	221 Round Punch 7/16	Same Day	$19.90
22115	15/32 (0.469)"	None	221 Round Punch 15/32	Same Day	$19.90
22116	1/2 (0.500)"	None	221 Round Punch 1/2	Same Day	$19.90
22117	17/32 (0.531)"	None	221 Round Punch 17/32	Same Day	$19.90
22118	9/16 (0.563)"	None	221 Round Punch 9/16	Same Day	$19.90
22119	19/32 (0.594)"	None	221 Round Punch 19/32	Same Day	$19.90
22120	5/8 (0.625)"	None	221 Round Punch 5/8	Same Day	$19.90
22121	21/32 (0.656)"	None	221 Round Punch 21/32	Same Day	$19.90
22122	11/16 (0.688)"	None	221 Round Punch 11/16	Same Day	$19.90
22123	23/32 (0.719)"	None	221 Round Punch 23/32	Same Day	$19.90
22124	3/4 (0.750)"	None	221 Round Punch 3/4	Same Day	$19.90
22125	25/32 (0.781)"	None	221 Round Punch 25/32	Same Day	$19.90
22126	13/16 (0.813)"	None	221 Round Punch 13/16	Same Day	$19.90
22127	27/32 (0.844)"	None	221 Round Punch 27/32	Same Day	$19.90
22128	7/8 (0.875)"	None	221 Round Punch 7/8	Same Day	$19.90
22129	29/32 (0.906)"	None	221 Round Punch 29/32	Same Day	$19.90
22130	15/16 (0.938)"	None	221 Round Punch 15/16	Same Day	$19.90
22132	1 (1.000)"	None	221 Round Punch 1"	Same Day	$19.90
22133	1-1/32 (1.031)"	None	221 Round Punch 1-1/32	Same Day	$19.90
22134	1-1/16 (1.063)"	None	221 Round Punch 1-1/16	Same Day	$19.90
22135	1-3/32 (1.094)"	None	221 Round Punch 1-3/32	Same Day	$19.90
22136	1-1/8 (1.125)"	None	221 Round Punch 1-1/8	Same Day	$19.90
22137	1-5/32 (1.156)"	None	221 Round Punch 1-5/32	Same Day	$19.90
22138	1-3/16 (1.188)"	None	221 Round Punch 1-3/16	Same Day	$19.90
22140	1-1/4 (1.250)"	None	221 Round Punch 1-1/4	Same Day	$19.90
22142	1-5/16 (1.313)"	None	221 Round Punch 1-5/16	Same Day	$19.90
221RD		None	221 Round Punch in Any size not shown	24 hours	$32.90

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
221OBBail		2mm x 4mm	221 Oblong Punch With 2mm x 4mm Keyway in any size not shown	24 hours	$85.80

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
221SQBail		2mm x 4mm	221 Square Punch With 2mm x 4mm Keyway in any size not shown	24 hours	$85.80

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
221HXBail		2mm x 4mm	221 Hex Punch With 2mm x 4mm Keyway in any size not shown	24 hours	$85.80

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
221RCBail		2mm x 4mm	221 Rectangle Punch With 2mm x 4mm Keyway in any size not shown	24 hours	$85.80

419

Specifications

Outside Diameter2-3/8"
Height1-1/4"

Equivalent Part Numbers

CPDF-62
APC319
PWJF

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?

Material thickness
(in inches) Please input valid thickness.
Material type you
are punching

Please select material type.
Punch size (must be greater or equal to thickness)

Please select material size.

Die Clearance 0.000"
Die Size 0.000"

Part No.	Size	Description	Locating Spot	Availability	Price
41907	7/32 (0.219)"	419 Round Die 7/32	None	Same Day	$26.50
41908	1/4 (0.250)"	419 Round Die 1/4	None	Same Day	$26.50
41909	9/32 (0.281)"	419 Round Die 9/32	None	Same Day	$26.50
41910	5/16 (0.313)"	419 Round Die 5/16	None	Same Day	$26.50
41911	11/32 (0.344)"	419 Round Die 11/32	None	Same Day	$26.50
41912	3/8 (0.375)"	419 Round Die 3/8	None	Same Day	$26.50
41913	13/32 (0.406)"	419 Round Die 13/32	None	Same Day	$26.50
41914	7/16 (0.438)"	419 Round Die 7/16	None	Same Day	$26.50
41915	15/32 (0.469)"	419 Round Die 15/32	None	Same Day	$26.50
41916	1/2 (0.500)"	419 Round Die 1/2	None	Same Day	$26.50
41917	17/32 (0.531)"	419 Round Die 17/32	None	Same Day	$26.50
41918	9/16 (0.563)"	419 Round Die 9/16	None	Same Day	$26.50
41919	19/32 (0.594)"	419 Round Die 19/32	None	Same Day	$26.50
41920	5/8 (0.625)"	419 Round Die 5/8	None	Same Day	$26.50
41921	21/32 (0.656)"	419 Round Die 21/32	None	Same Day	$26.50
41922	11/16 (0.688)"	419 Round Die 11/16	None	Same Day	$26.50
41923	23/32 (0.719)"	419 Round Die 23/32	None	Same Day	$26.50
41924	3/4 (0.750)"	419 Round Die 3/4	None	Same Day	$26.50
41925	25/32 (0.781)"	419 Round Die 25/32	None	Same Day	$26.50
41926	13/16 (0.813)"	419 Round Die 13/16	None	Same Day	$26.50
41927	27/32 (0.844)"	419 Round Die 27/32	None	Same Day	$26.50
41928	7/8 (0.875)"	419 Round Die 7/8	None	Same Day	$26.50
41929	29/32 (0.906)"	419 Round Die 29/32	None	Same Day	$26.50
41930	15/16 (0.938)"	419 Round Die 15/16	None	Same Day	$26.50
41931	31/32 (0.969)"	419 Round Die 31/32	None	Same Day	$26.50
41932	1" (1.000)"	419 Round Die 1"	None	Same Day	$26.50
41933	1-1/32 (1.031)"	419 Round Die 1-1/32	None	Same Day	$26.50
41934	1-1/16 (1.063)"	419 Round Die 1-1/16	None	Same Day	$26.50
41935	1-3/32 (1.094)"	419 Round Die 1-3/32	None	Same Day	$26.50
41936	1-1/8 (1.125)"	419 Round Die 1-1/8	None	Same Day	$26.50
41937	1-5/32 (1.156)"	419 Round Die 1-5/32	None	Same Day	$26.50
41938	1-3/16 (1.188)"	419 Round Die 1-3/16	None	Same Day	$26.50
41939	1-7/32 (1.219)"	419 Round Die 1-7/32	None	Same Day	$26.50
41940	1-1/4 (1.250)"	419 Round Die 1-1/4	None	Same Day	$26.50
41941	1-9/32 (1.281)"	419 Round Die 1-9/32	None	Same Day	$26.50
41942	1-5/16 (1.313)"	419 Round Die 1-5/16	None	Same Day	$26.50
41943	1-11/32 (1.344)"	419 Round Die 1-11/32	None	Same Day	$26.50
41944	1-3/8 (1.375)"	419 Round Die 1-3/8	None	Same Day	$26.50
41945	1-13/32 (1.406)"	419 Round Die 1-13/32	None	Same Day	$26.50
41946	1-7/16 (1.438)"	419 Round Die 1-7/16	None	Same Day	$26.50
41947	1-15/32 (1.468)"	419 Round Die 1-15/32	None	Same Day	$26.50
41948	1-1/2 (1.500)"	419 Round Die 1-1/2	None	Same Day	$26.50
41949	1-17/32 (1.531)"	419 Round Die 1-17/32	None	Same Day	$26.50
41950	1-9/16 (1.563)"	419 Round Die 1-9/16	None	Same Day	$26.50
41951	1-19/32 (1.594)"	419 Round Die 1-19/32	None	Same Day	$26.50
41952	1-5/8 (1.625)"	419 Round Die 1-5/8	None	Same Day	$26.50
419RD		419 Round Die in Any size not shown	None	24 hours	$39.50

Part No.	Size	Description	Locating Spot	Availability	Price
41990933	9/32 x 1-1/32 (0.281 x 1.031)"	419 Oblong Die 9/32 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41991133	11/32 x 1-1/32 (0.344 x 1.031)"	419 Oblong Die 11/32 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41991141	11/32 x 1-9/32 (0.344 x 1.281)"	419 Oblong Die 11/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41991333	13/32 x 1-1/32 (0.406 x 1.031)"	419 Oblong Die 13/32 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41991341	13/32 x 1-9/32 (0.406 x 1.281)"	419 Oblong Die 13/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41991349	13/32 x 1-17/32 (.406 x 1.531)"	419 Oblong Die 13/32 x 1-17/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41991525	15/32 x 25/32 (0.469 x 0.781)"	419 Oblong Die 15/32 x 25/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41991533	15/32 x 1-1/32 (0.469 x 1.031)"	419 Oblong Die 15/32 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41991541	15/32 x 1-9/32 (0.469 x 1.281)"	419 Oblong Die 15/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41991549	15/32 x 1-17/32 (0.469 x 1.531)"	419 Oblong Die 15/32 X 1-17/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41991733	17/32 x 1-1/32 (0.531 x 1.031)"	419 Oblong Die 17/32 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41991741	17/32 x 1-9/32 (0.531 x 1.281)"	419 Oblong Die 17/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41991749	17/32 x 1-17/32 (0.531 x 1.531)"	419 Oblong Die 17/32 X 1-17/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41991933	19/32 x 1-1/32 (0.594 x 1.031)"	419 Oblong Die 19/32 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41991941	19/32 x 1-9/32 (0.594 x 1.281)"	419 Oblong Die 19/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41991949	19/32 x 1-17/32 (0.594 x 1.531)"	419 Oblong Die 19/32 X 1-17/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992034	5/8 x 1-1/16 (0.625 x 1.063)"	419 Oblong Die 5/8 x 1-1/16 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992042	5/8 x 1-5/16 (0.625 x 1.313)"	419 Oblong Die 5/8 x 1-5/16 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992050	5/8 x 1-9/16 (0.625 x 1.563)"	419 Oblong Die 5/8 x 1-9/16 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992133	21/32 x 1-1/32 (0.656 x 1.031)"	419 Oblong Die 21/32 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992141	21/32 x 1-9/32 (0.656 x 1.281)"	419 Oblong Die 21/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992149	21/32 x 1-17/32 (0.656 x 0.531)"	419 Oblong Die 21/32 X 1-17/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992242	11/16 x 1-5/16 (0.688 x 1.312)"	419 Oblong Die 11/16 x 1-5/16 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992333	23/32 x 1-1/32 (0.719 x 1.031)"	419 Oblong Die 23/32 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992341	23/32 x 1-9/32 (0.719 x 1.281)"	419 Oblong Die 23/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992349	23/32 x 1-17/32 (0.719 x 1.531)"	419 Oblong Die 23/32 x 1-17/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992442	3/4 x 1-5/16 (0.750 x 1.312)"	419 Oblong Die 3/4 x 1-5/16 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992450	3/4 x 1-9/16 (0.750 x 1.563)"	419 Oblong Die 3/4 X 1-9/16 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992533	25/32 x 1-1/32 (0.781 x 1.031)"	419 Oblong Die 25/32 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992541	25/32 x 1-9/32 (0.781 x 1.281)"	419 Oblong Die 25/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992549	25/32 x 1-17/32 (0.781 x 1.531)"	419 Oblong Die 25/32 x 1-17/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992634	13/16 x 1-1/16 (0.812 x 1.062)"	419 Oblong Die 13/16 x 1-1/16 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992642	13/16 x 1-5/16 (0.813 x 1.313)"	419 Oblong Die 13/16 x 1-5/16 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992650	13/16 x 1-9/16 (0.813 x 1.563)"	419 Oblong Die 13/16 x 1-9/16 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992733	27/32 x 1-1/32 (0.844 x 1.031)"	419 Oblong Die 27/32 x 1-1/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992735	27/32 x 1-3/32 (0.844 x 1.094)"	419 Oblong Die 27/32 x 1-3/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992741	27/32 x 1-9/32 (0.844 x 1.281)"	419 Oblong Die 27/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992749	27/32 x 1-17/32 (0.844 x 1.531)"	419 Oblong Die 27/32 X 1-17/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992834	7/8 x 1-1/16 (0.875 x 1.063)"	419 Oblong Die 7/8 x 1-1/16 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992836	7/8 x 1-1/8 (0.875 x 1.125)"	419 Oblong Die 7/8 x 1-1/8 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992842	7/8 x 1-5/16 (0.875 x 1.313)"	419 Oblong Die 7/8 x 1-5/16 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992850	7/8 x 1-9/16 (0.875 x 1.563)"	419 Oblong Die 7/8 x 1-9/16 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992941	29/32 x 1-9/32 (0.906 x 1.281)"	419 Oblong Die 29/32 x 1-9/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41992949	29/32 x 1-17/32 (0.906 x 1.531)"	419 Oblong Die 29/32 X 1-17/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41993042	15/16 x 1-5/16 (0.938 x 1.313)"	419 Oblong Die 15/16 x 1-5/16 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41993050	15/16 x 1-9/16 (0.938 x 1.563)"	419 Oblong Die 15/16 x 1-9/16 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41993137	31/32 x 1-5/32 (0.969 x 1.156)"	419 Oblong Die 31/32 x 1-5/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41993149	31/32 x 1-17/32 (0.969 x 1.531)"	419 Oblong Die 31/32 x 1-17/32 With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41993238	1" x 1-3/16" (1.000 x 1.188)"	419 Oblong Die 1" x 1-3/16" With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41993250	1 x 1-9/16 (1.000 x 1.563)"	419 Oblong Die 1" x 1-9/16" With 2 Whistle Spots	2 Whistles	Same Day	$79.55
41993349	1-1/32 x 1-17/32 (1.031 x 1.531)"	419 Oblong Die 1-1/32" x 1-17/32" With 2 Whistle Spots	2 Whistles	Same Day	$79.55
419OB		419 Oblong Die in Any size not shown	2 Whistles	24 hours	$99.00

Part No.	Size	Description	Locating Spot	Availability	Price
419813	13/32 (0.406)"	419 Square Die 13/32 1 Whistle Spot	1 Whistle	Same Day	$79.55
419815	15/32 (0.469)"	419 Square Die 15/32 1 Whistle Spot	1 Whistle	Same Day	$79.55
419817	17/32 (0.531)"	419 Square Die 17/32 1 Whistle Spot	1 Whistle	Same Day	$79.55
419818	9/16 (0.563)"	419 Square Die 9/16 1 Whistle Spot	1 Whistle	Same Day	$79.55
419819	19/32 (0.594)"	419 Square Die 19/32 1 Whistle Spot	1 Whistle	Same Day	$79.55
419821	21/32 (0.656)"	419 Square Die 21/32 1 Whistle Spot	1 Whistle	Same Day	$79.55
419822	11/16 (0.688)"	419 Square Die 11/16 1 Whistle Spot	1 Whistle	Same Day	$79.55
419823	23/32 (0.719)"	419 Square Die 23/32 1 Whistle Spot	1 Whistle	Same Day	$79.55
419825	25/32 (0.781)"	419 Square Die 25/32 1 Whistle Spot	1 Whistle	Same Day	$79.55
419826	13/16 (0.813)"	419 Square Die 13/16 1 Whistle Spot	1 Whistle	Same Day	$79.55
419827	27/32 (0.844)"	419 Square Die 27/32 1 Whistle Spot	1 Whistle	Same Day	$79.55
419828	7/8 (0.875)"	419 Square Die 7/8 1 Whistle Spot	1 Whistle	Same Day	$79.55
419833	1-1/32 (1.031)"	419 Square Die 1-1/32 1 Whistle Spot	1 Whistle	Same Day	$79.55
419834	1-1/16 (1.063)"	419 Square Die 1-1/16 1 Whistle Spot	1 Whistle	Same Day	$79.55
419835	1-3/32 (1.094)"	419 Square Die 1-3/32 1 Whistle Spot	1 Whistle	Same Day	$79.55
419836	1-1/8 (1.125)"	419 Square Die 1-1/8 1 Whistle Spot	1 Whistle	Same Day	$79.55
419SQ		419 Square Die in Any size not shown	1 Whistle	24 hours	$99.00

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
419HX		419 Hex Die in Any size not shown	1 Whistle	24 hours	$99.00

Part No.	Size	Description	Locating Spot	Availability	Price	Quantity	Purchase
419RC		419 Rectangle Die in Any size not shown	2 Whistles	24 hours	$99.00

Oversize Punches & Dies

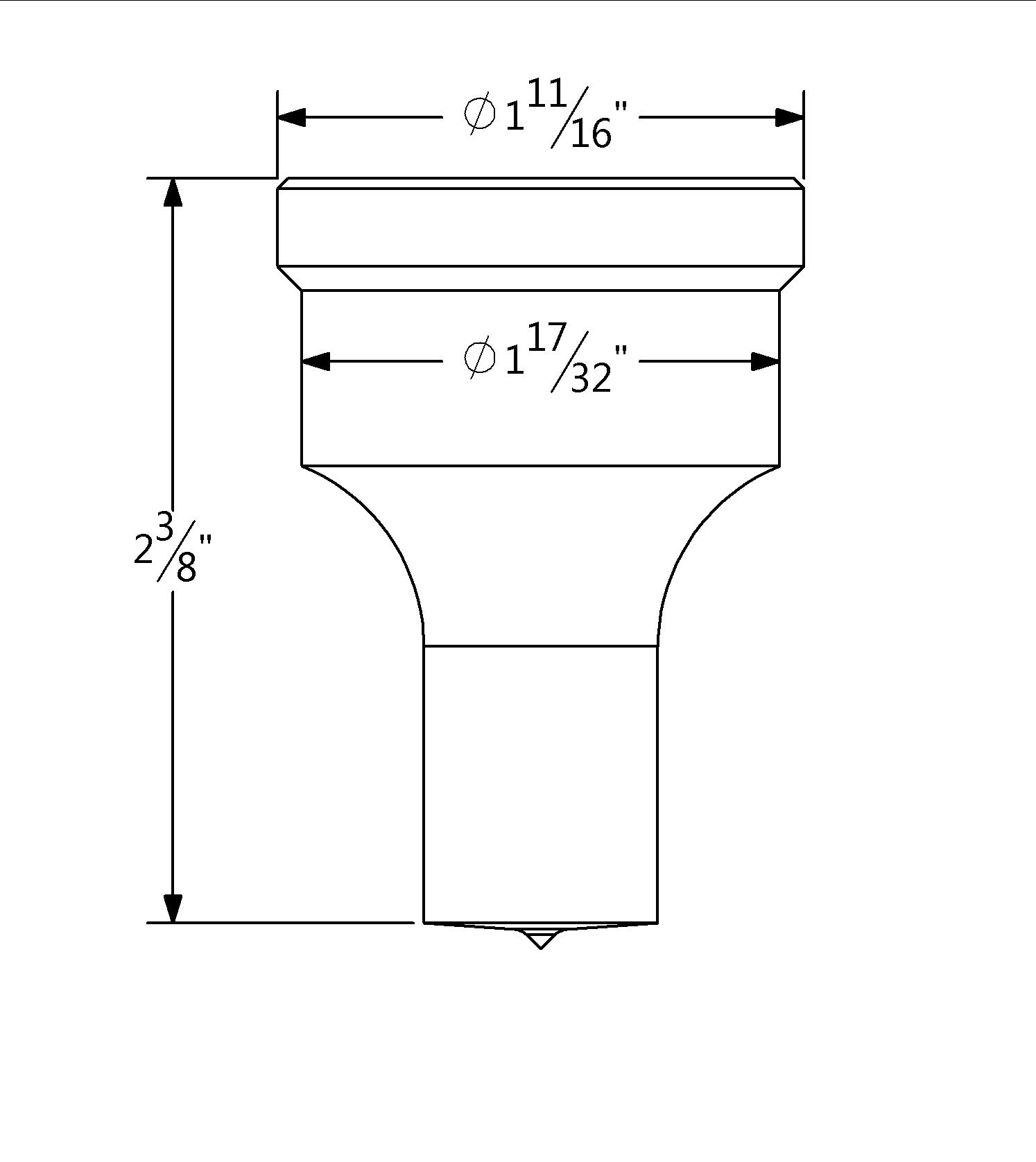

228S

Specifications

Head Diameter1-11/16"
Body Diameter1-17/32"
Overall Length2-3/8"

Equivalent Part Numbers

CPDF-26S
APC128S

Stock Sizes shown. If you don’t see the size you need, scroll down to the bottom, click “any size not shown” and enter your size

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
228SRD		None	228S Round Punch Any size not shown	24 hours	$41.70

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
228SOBBail		2mm x 4mm	228S Oblong Punch With 2mm x 4mm Keyway in any size not shown	24 hours	$98.25

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
228SSQBail		2mm x 4mm	228S Square Punch With 2mm x 4mm Keyway in any size not shown	24 hours	$98.25

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
228SHXBail		2mm x 4mm	228S Hex Punch With 2mm x 4mm Keyway in any size not shown	24 hours	$98.25

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
228SRCBail		2mm x 4mm	228S Rectangle Punch With 2mm x 4mm Keyway in any size not shown	24 hours	$98.25

237

Specifications

Head Diameter2-1/2"
Body Diameter2-9/32"
Overall Length3"

Equivalent Part Numbers

CPDC-50
APC137
PWVP

Stock Sizes shown. If you don’t see the size you need, scroll down to the bottom, click “any size not shown” and enter your size

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
237RD		N/A	237 Round Punch Any size not shown	72 hours	$63.70

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
237OBBail		4mm x 4mm	237 Oblong Punch With 4mm x 4mm Keyway in any size not shown	72 hours	$179.60

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
237SQBail		4mm x 4mm	237 Square Punch With 4mm x 4mm Keyway in any size not shown	72 hours	$179.60

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
237HXBail		4mm x 4mm	237 Hex Punch With 4mm x 4mm Keyway in any size not shown	72 hours	$179.60

Part No.	Size	Keyway	Description	Availability	Price	Quantity	Purchase
237RCBail		4mm x 4mm	237 Rectangle Punch With 4mm x 4mm Keyway in any size not shown	72 hours	$179.60
