Oversized attachment for 228: up to 1-1/2" round. Oversized attachment for 241: up to 4" round.
228 Punch 419 Die: Punches sizes up to 1-1/2" round through 3/16" thick mild steel

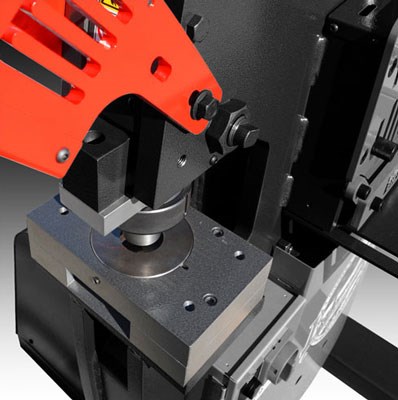

241 Punch 28XX Die (shown) Punches sizes up to 3-1/2" round through 14 gauge mild steel

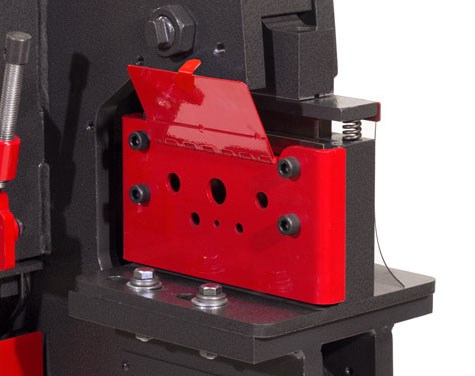

Reduce deformation in 1/4" to 1" mind steel rod.
Shears 1/4", 3/8", 1/2", 5/8", 3/4", 1" mild steel rod

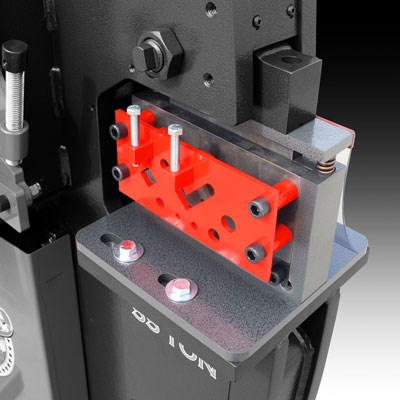

Combined Flat Bar, Angle, and Rod Shear for mild steel.
Flat Bar Shear: 1/4" x 6" mild steel
Angle Shear: 2" x 2" x 1/4" mild steel
Rod Shear: 1/4", 3/8", 1/2", 5/8", 3/4" mild steel
Square rod 13/16"

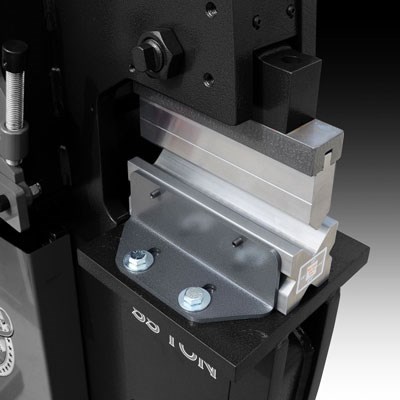

Controlled, repeatable bends in 1/4" thick mild steel.
8" wide x 1/4" thick mild steel (rear station only)

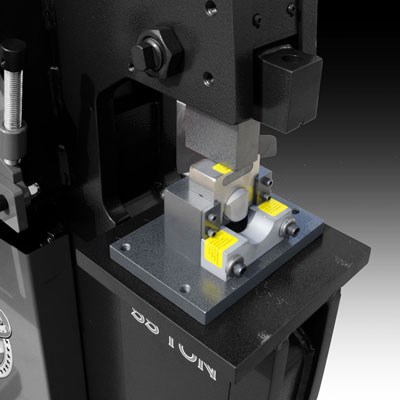

Notch up to 2" schedule 40 pipe.
Standard die sizes are 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Schedule 40 Pipe

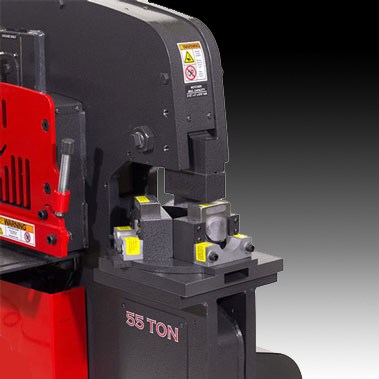

Load 3 different pipe notcher dies at once.
Load 3 different pipe notcher dies at once and quickly switch from one size to the next.
Precise 92 degree notch in 1/4" mild steel.
2" x 2" x 1/4" mild steel

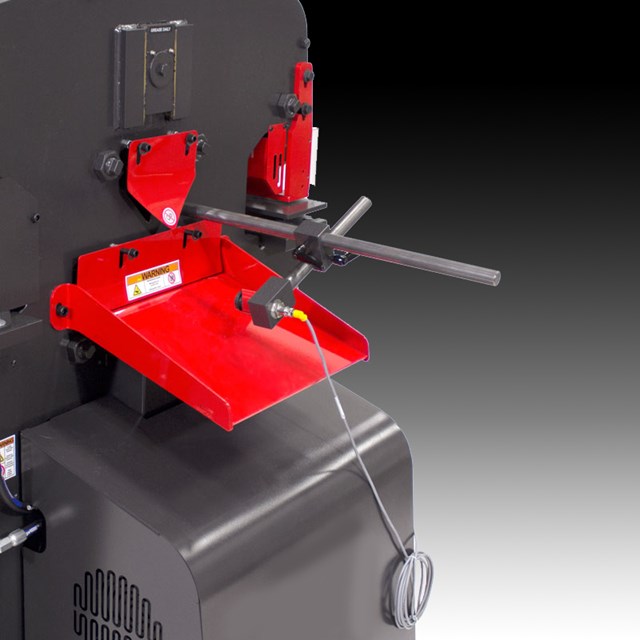

Cut long material into repeatable lengths.
Adjustable proximity switch automates production when cutting repeatable lengths.
