CST 120 Ton

CST 120 Ton

Our 120 Ton Ironworker is the industrial heavyweight.

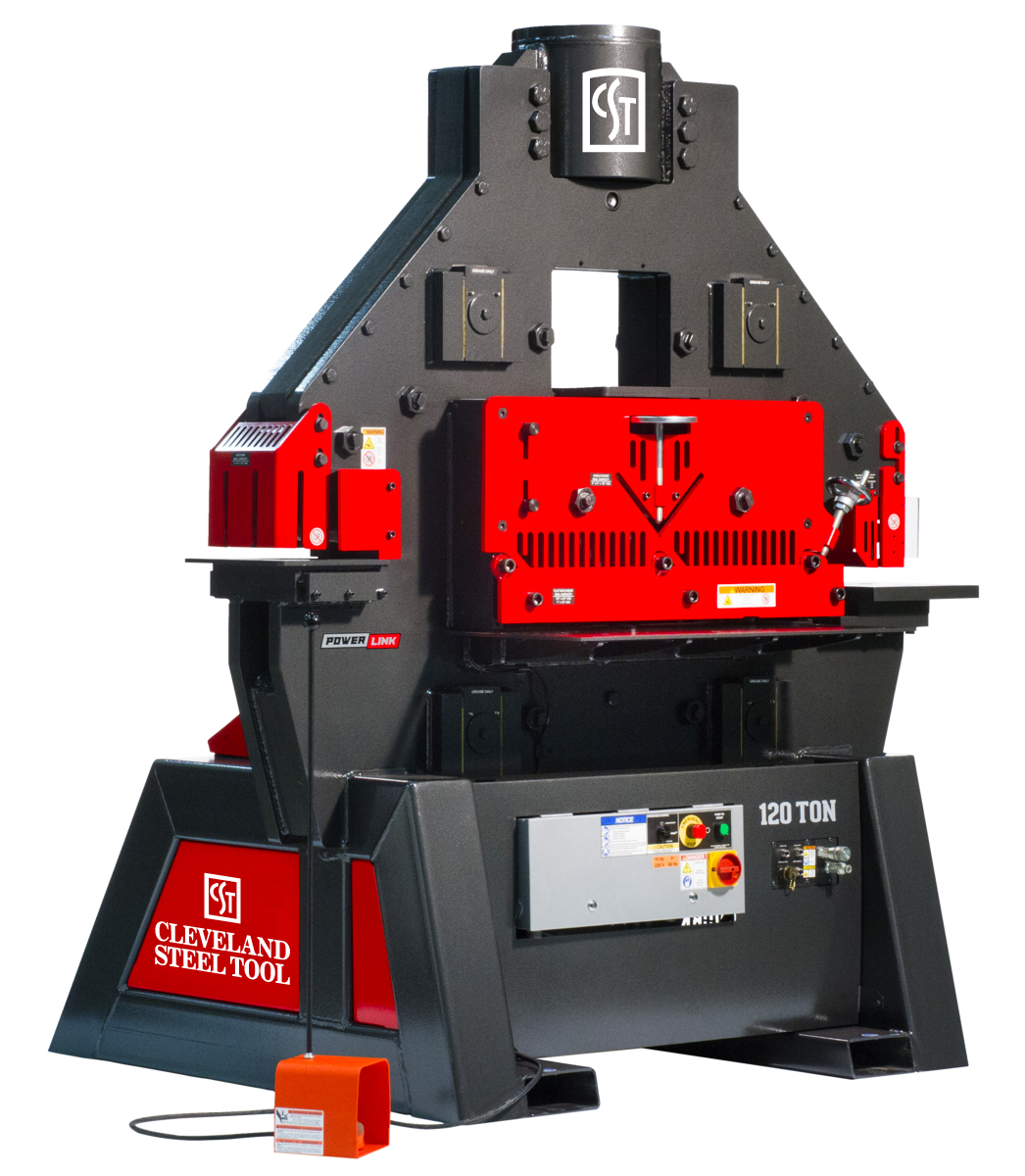

CST 120 Ton Ironworker Front View

Our Highest capacity Ironworker-the standard for superior production performance.

Comes equipped with punch station, angle shear, up to 24" flat bar shear, coper notcher and an open station. Choose from the multi-shear, angle notcher, 10" brake, pipe notcher, or oversized punching attachment. Install the PowerLink System and maximize your shop capabilities by choosing the 10 Ton Pipe and Tube Bender, or one of our shop presses.

Technical Specifications:
Rated capacity 120 Ton 65,000 psi tensile strength
Number of work stations 5
Throat Depth 11"
Maximum Capacity 1-1/2" dia. thru 1" plate
Open height 9"
Closed height 7"
Stroke 2-1/8"
Table Size 6" x 10"
Hydraulic System 17 gallon reservoir, 2-1/2" cylinder
Standard Motor 10 HP, 3 Phase, 208V or 230V - 26 amp
Optional Motor 10 HP, 3 Phase, 460V - 12 amp
Optional Motor 10 HP, 3 Phase, 575V - 10 amp
Dimension Base 60" W x 60" D x 79-3/8" H
Shipping Weight 5,500 lbs.
